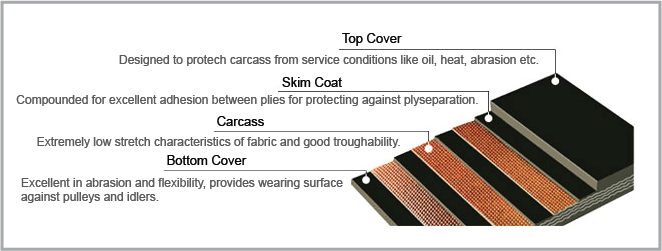

The primary structure of conveyor belts comprises as follows

Cover Rubber Thickness

Condition		Moderately Abrasive	Abrosive	Very Abrasive	Extremely Abrasive
Material Carried		Fine Coal, Grain, Wood Chips, Ash, Cement, etc.	Sand, Coal, Clay, Salt, etc.	Limestone, Crushed Stone, Coke, etc.	Ores, Slag, Cullet, etc.
Lump Size / Belt Cycle (Second)	inch	0~2"(0~50mm)	2"~6"(50~150mm)	6"~10"(150~250mm)	8"~12"(200~300mm)
0 ~ 20	inch	1/16 ~ 1/8 (1.5~3.0mm)	1/8 ~ 3/16 (3.0~5.0mm)	3/16 ~ 1/4 (5.0~6.0mm)	1/4 ~ 5/16 (6.0~8.0mm)
20 ~ 60	inch	1/16 ~ 3/32 (1.5~2.5mm)	1/8 ~ 3/16 (3.0~5.0mm)	3/16 ~ 1/4 (5.0~6.0mm)	1/4 ~ 5/16 (6.0~8.0mm)
60 ~ 300	inch	1/16 ~ 1/32 (1.5~0.8mm)	1/16 ~ 3/32 (1.5~2.5mm)	1/8 ~ 3/16 (3.0~5.0mm)	3/16 ~ 1/4 (5.0~6.0mm)

Cover Rubber Grade

• Cover Rubber Grade : RMA, DIN, BS, AS, JIS

Cover Grade	Tensile Strength Min.(Mpa)	Elongation Min.(%)	Abrasion Loss Max.(mm3)
DIN - X	25	450	120
DIN - W	18	400	90
AS - A	17	400	70

* Note : Abrasion test is based on DIN 53516
